MX4C
High-Fidelity 4-inch Ceiling MonitorThe Quest MX4C is a compact, high-fidelity ceiling monitor that excels in environments where space is at a premium without compromising audio quality. This two-way speaker features a custom-fabricated die-cast aluminium woofer paired with a uniquely engineered titanium dome tweeter to deliver precise and detailed sound reproduction. Its enclosure incorporates an ABS fire-rated baffle and an aluminium back can that enhances heat dissipation and overall efficiency. The MX4C supports both 70/100V and 16 Ω configurations and includes front-baffle high-frequency attenuation controls discreetly hidden behind a fast-fit magnetic grille. Available in white and black finishes, it integrates seamlessly into a variety of professional installations.
Key Specifications:
- Impedance: 16 Ω
- Transducers: 1″ HF & 4″ LF
- Transformer: 70/100V integrated
- Dispersion: 160° x 130°
- Power: 50W RMS
- Finishes: White and Black
SPECIFICATIONS
| COLOURS |
|
||
| MODELS |
|
||
| FREQUENCY RESPONSE (-6 dB) |
79 Hz to 20 kHz |
||
| SENSITIVITY - 1 W @ 1 m |
86 dB |
||
| MAXIMUM SPL @ 1 m |
104 dB |
||
| POWER HANDLING (RMS/PEAK) |
75 W / 100 W |
||
| NOMINAL IMPEDANCE |
16 Ω |
||
| TRANSDUCERS |
HF: 25 mm (1") Dome Tweeter / LF: 101.6 mm (4") Woofer |
||
| DISPERSION (H° x V°) |
160° x 130° |
||
| DIRECTIVITY INDEX |
3 dB |
||
| TRANSFORMER SETTINGS |
100 V: 4 W / 8 W / 15 W / 30 W 70 V: 2 W / 4 W / 8 W / 15 W |
||
| CONNECTIONS |
Euroblock/Phoenix Connector - 5.08 mm Pitch (In/Thru) |
||
| DIMENSIONS (W x D) |
197 x 155 mm (7.7" x 6.1") |
||
| CUT-OUT DIAMETER |
170 mm (6.7") |
||
| WEIGHT |
2.0 kg (4.4 lb) |
||
| RIGGING POINTS |
Safety cable attachment point |
||
| CABINET MATERIAL & FINISH |
Fire-resistant aluminium backcan with a powder-coated black finish |
||
| GRILLE MATERIAL & FINISH |

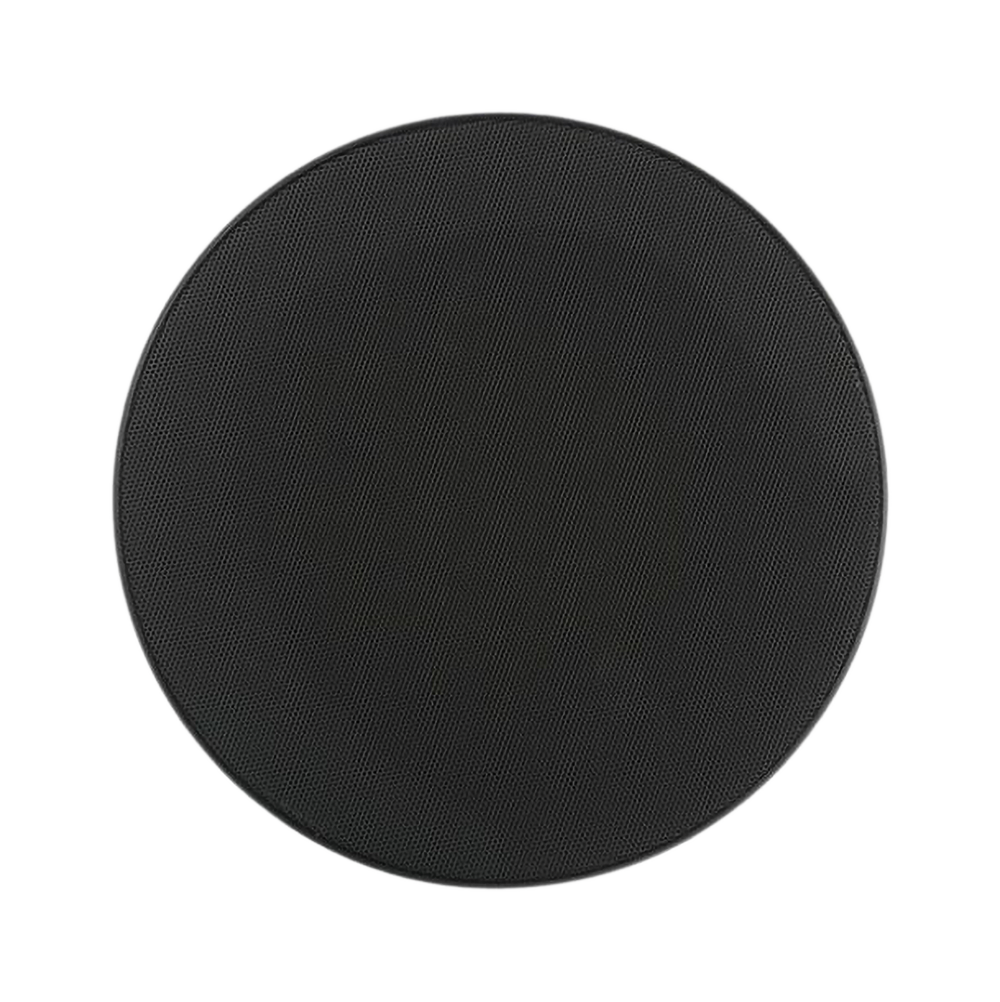

Powder-coated steel removable magnetic rimless grille |
||
| SHIPPING DIMENSIONS (H x W x D) |
270 x 270 x 190 mm (10.6" x 10.6" x 7.5") |
||
| SHIPPING WEIGHT |
2.7 kg (6 lb) |
||
| RECOMMENDED POWER AMPLIFIER |
Quest QX Amplifiers |
||
| ACCESSORIES (INCLUDED) |
Grille |
||
| ACCESSORIES (AVAILABLE SEPARATELY) |

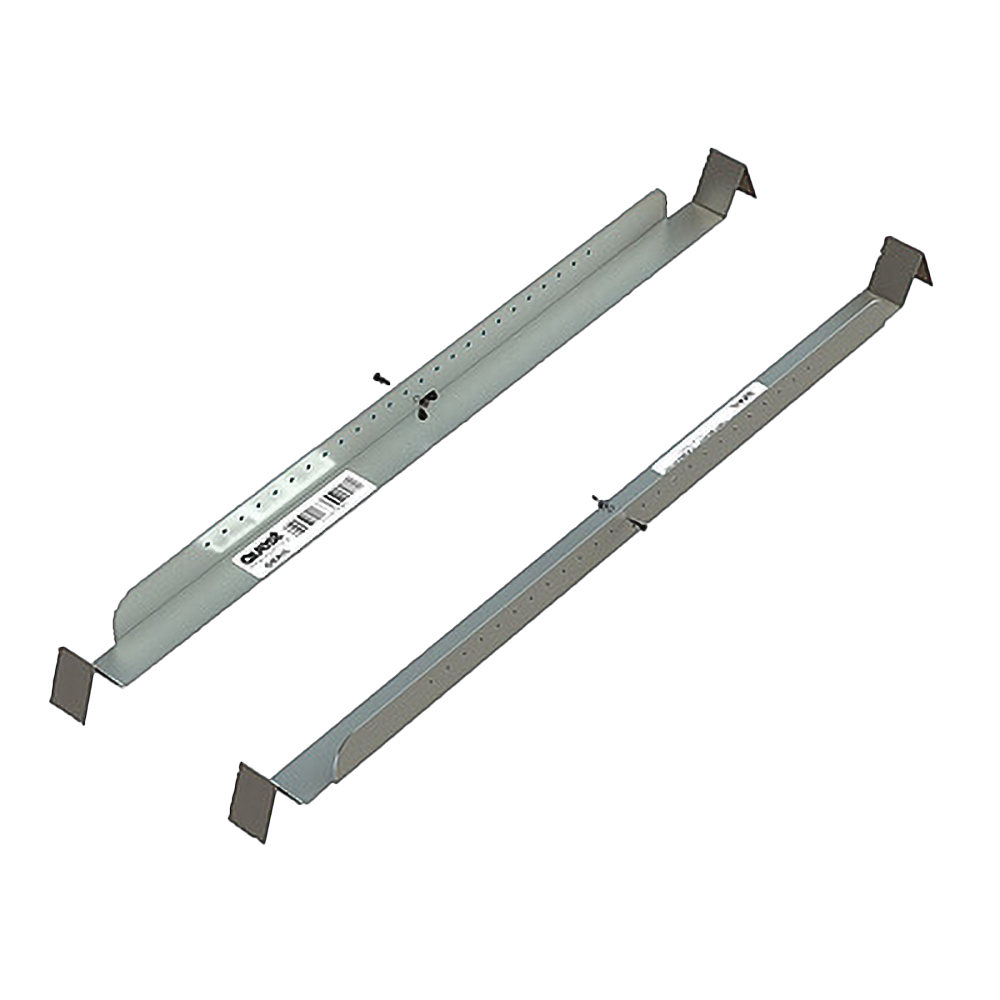

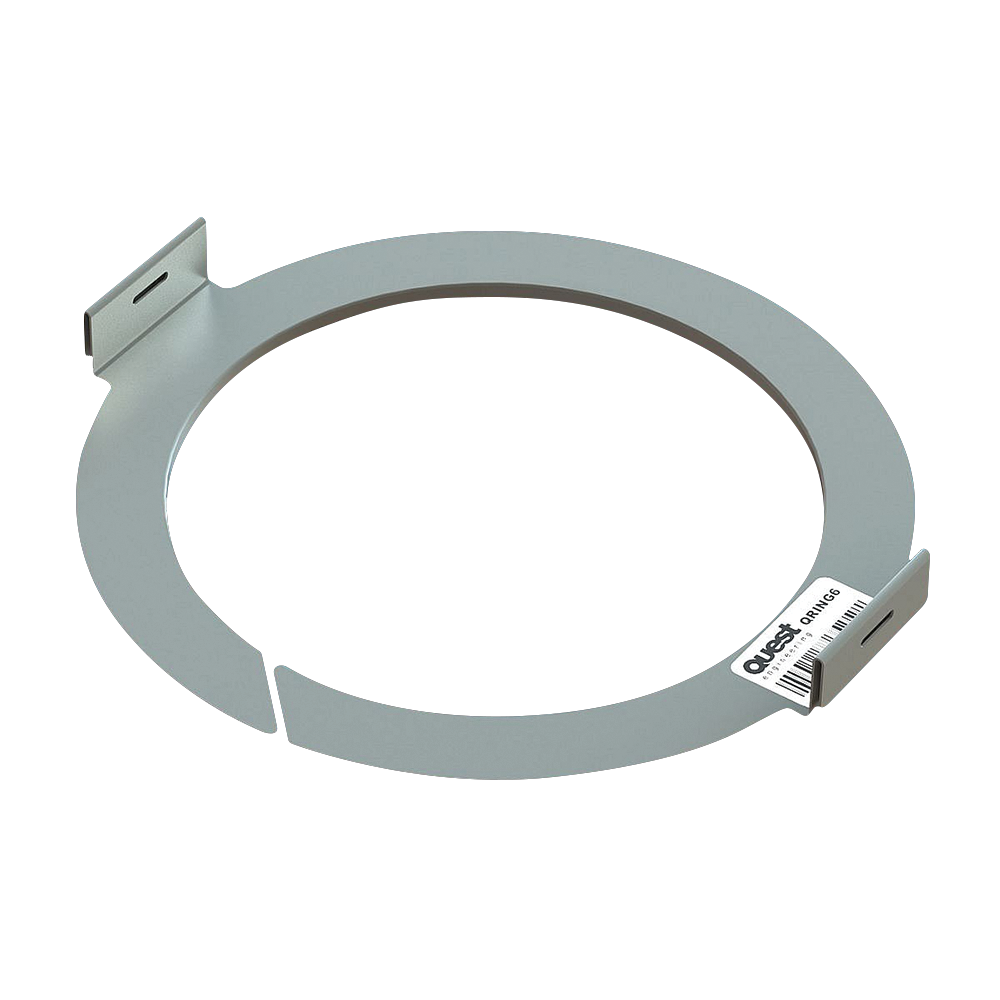

Ceiling Tile Rail (QRAIL), Ceiling Ring (QRING4) and replacement Locking Tab (LTMXC) |
