MX6C

High-Fidelity 6-inch Ceiling Monitor

The Quest MX6C extends the design excellence of the MX wall speakers into ceiling applications, delivering a harmonious solution for full-range audio systems. Engineered for flexibility, the MX6C supports both 16 Ω low impedance and 70/100V configurations with selectable wattage tapings. Its acoustic design is carefully matched to its wall-mounted counterparts, ensuring a consistent sonic footprint throughout a venue. An optional black grille further enhances its visual integration, making it a dependable choice for installations where performance and aesthetics are equally critical.
Key Specifications:

Impedance: 16 Ω
Transducers: 1″ HF & 6″ LF
Transformer: 70/100V integrated
Dispersion: 130°
Power: 80W RMS

SPECIFICATIONS

COLOURS

WHITE (RAL)

BLACK (RAL)

MODELS

MX6CW

MX6CB

FREQUENCY RESPONSE (-6 dB)

70 Hz to 20 kHz

SENSITIVITY - 1 W @ 1 m

91 dB

MAXIMUM SPL @ 1 m

113 dB

POWER HANDLING (RMS/PEAK)

75 W / 100 W

NOMINAL IMPEDANCE

16 Ω

TRANSDUCERS

HF: 25 mm (1") Dome Tweeter / LF: 152 mm (6") Woofer

DISPERSION (H° x V°)

130° Conical

DIRECTIVITY INDEX

3 dB

TRANSFORMER SETTINGS

100 V: 10 W / 20 W / 30 W / 40 W 70 V: 5 W / 10 W / 15 W / 20 W

CONNECTIONS

Euroblock/Phoenix Connector - 5.08 mm Pitch (In/Thru)

DIMENSIONS (W x D)

197 x 155 mm (7.7" x 6.1")

CUT-OUT DIAMETER

170 mm (6.7")

WEIGHT

2.0 kg (4.4 lb)

RIGGING POINTS

Safety cable attachment point

CABINET MATERIAL & FINISH

Fire-resistant aluminium backcan with a powder-coated black finish

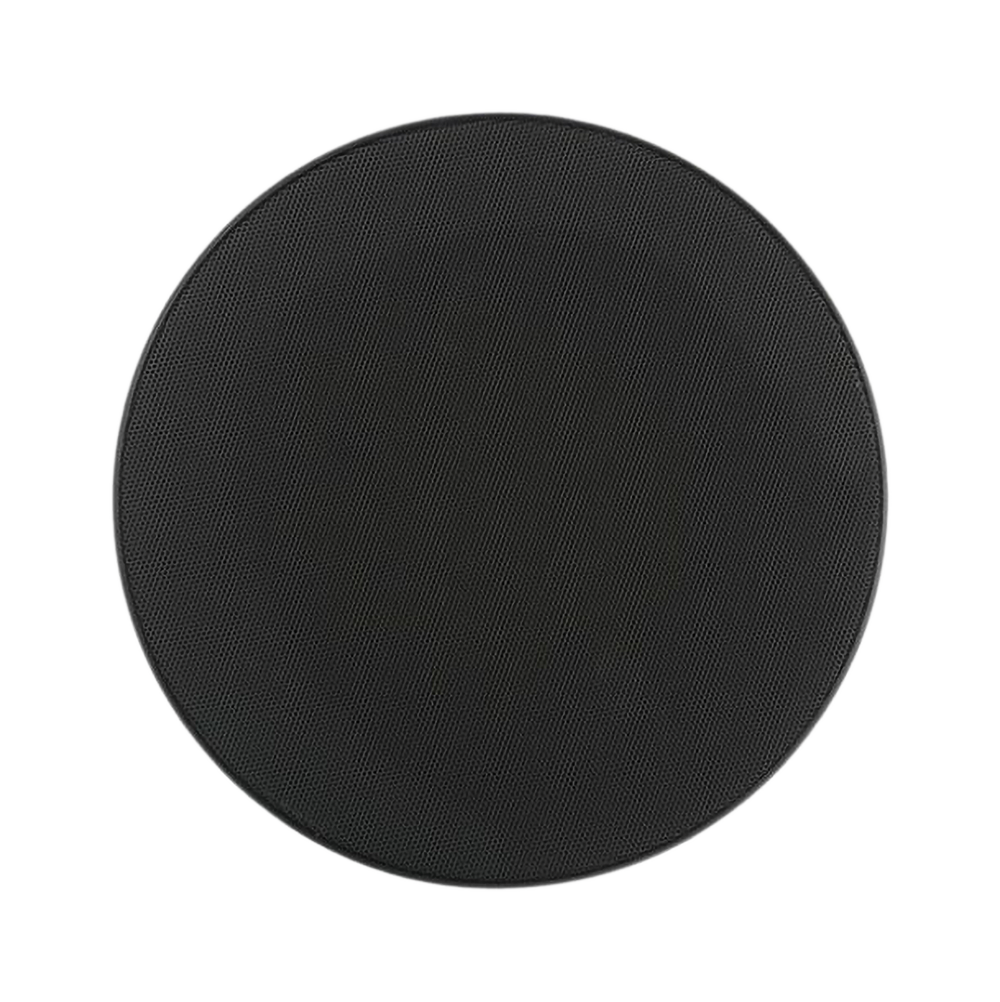

GRILLE MATERIAL & FINISH

Powder-coated steel removable magnetic rimless grille

SHIPPING DIMENSIONS (H x W x D)

270 x 270 x 190 mm (10.6" x 10.6" x 7.5")

SHIPPING WEIGHT

2.7 kg (6 lb)

RECOMMENDED POWER AMPLIFIER

Quest QX Amplifiers

ACCESSORIES (INCLUDED)

Grille

ACCESSORIES (AVAILABLE SEPARATELY)

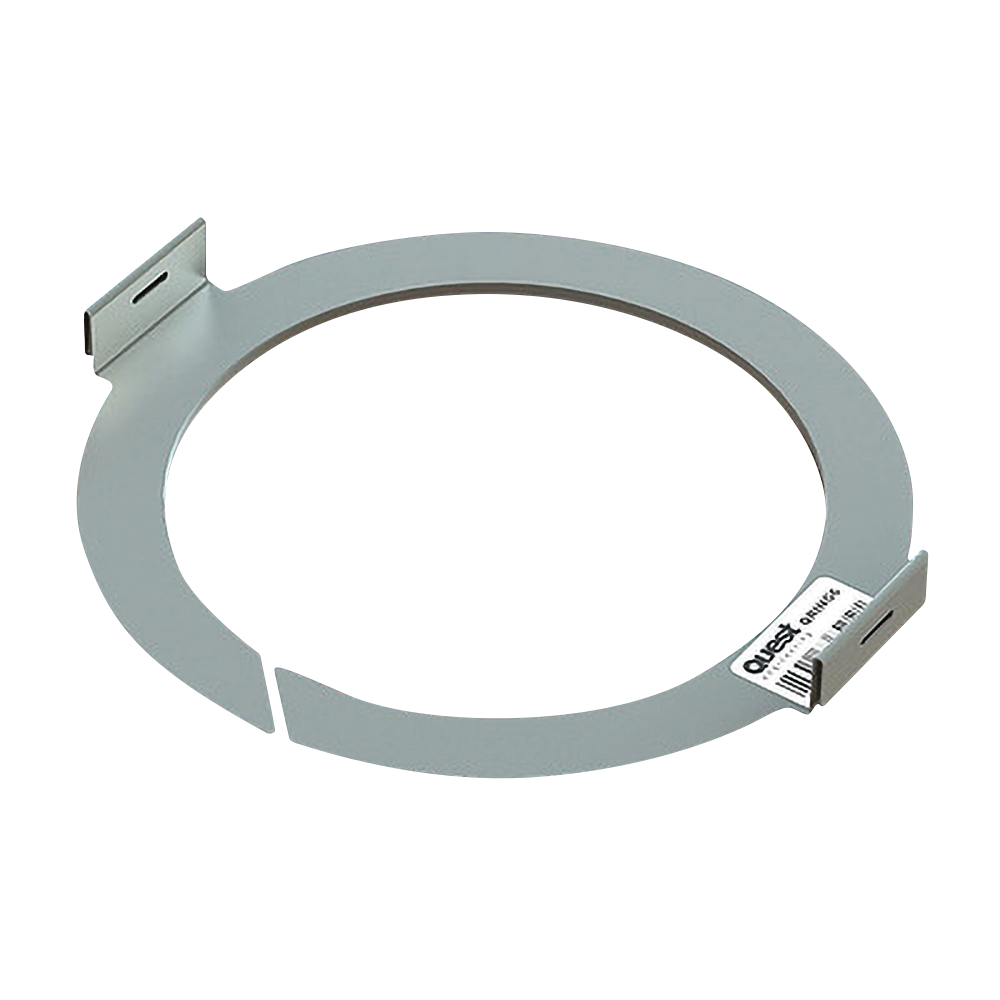

Ceiling Tile Rail (QRAIL), Ceiling Ring (QRING4) and replacement Locking Tab (LTMXC)
